    Forestry cranes

    Forestry cranes

    Forestry cranes

    Trejon Multiforest crane series are manufactured in Trejon's own factory and offers a wide range of impressive features for their respective size classes.
    Depending on which lifting capacity and reach range you need, if you will use the crane for light handling and transport of wood or for professional use, we can customize it according to your needs. A smooth parallel crane or a knuckleboom crane - Trejon Multiforest has both of them!

    All models have high capacity in relation to their own weight thanks to crane column that is made from special, high quality Swedish steel.
    The optimized geometry gives a perfect movement pattern and a well-dimensioned, solid iron casted turning house provides high torque. The hydraulic cylinders, hoses and pipes are well protected and smartly placed. The cranes are powder coated with lubricatable bushings in all linkage points, all that to maximize the wear resistance, load capacity and lifetime of the crane.

    Together with Trejon Muliforest trailer, you will get a powerful combination for an efficient working day in the forest.

    Parallel cranes

    We offer 5,1 - 6,2 meters parallel cranes that are easy to maneuver, have a unique movement pattern and high durability despite slim construction.
    Parallel cranes only need low oil flow without losing these fast and precise movements. Very popular in combination with a wood chipper.

    Knuckleboom cranes

    We offer 4,8 - 7,3 meters knuckleboom cranes that have optimized geometry for a better maneuverability, higher load capacity in all positions.
    Trejon Multiforest offers a wide range of models with or without telescopic extension.

    S-Line cranes

    We offer 8,4 - 9,0 meters S-Line cranes for the professional user who load large amounts of timber through out long working days.
    All components and the entire design characterize maximum wear resistance and load capacity.



    Models

    • Trejon Multiforest V4800

      Trejon Multiforest V4800

      SKU: 19-MFV4800

      • Crane length: 4,8 m
      • Slewing torque: 5,3 kNm
      • Lifting power gross: 23,5 kNm
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 410 kg
        - Max out: 365 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest P5100 P-crane

      Trejon Multiforest P5100 P-crane

      SKU: 19-MFP5100

      • Crane length: 5,1 m
      • Slewing torque: 12,2 kNm
      • Lifting power gross: 24 kNm
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 450 kg
        - Max out: 370 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest V5500 crane

      Trejon Multiforest V5500 crane

      SKU: 19-MFV5500

      • Crane length: 5,5 m
      • Slewing torque: 12,2 kNm
      • Lifting power gross: 44,2 kNm
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 785 kg
        - Max out: 725 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest V6500

      Trejon Multiforest V6500

      SKU: 19-MFV6500

      • Crane length: 6,5 m
      • Slewing torque: 12,2 kNm
      • Lifting power gross: 44,2 kNm
      • Hydraulic telescoping: 1 m
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 840 kg
        - Max out: 515 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest P5600 P-crane

      Trejon Multiforest P5600 P-crane

      SKU: 19-MFP5600

      • Crane length: 5,6 m
      • Slewing torque: 12,2 kNm
      • Lifting power gross: 31 kNm
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 530 kg
        - Max out: 415 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest P6200 P-crane

      Trejon Multiforest P6200 P-crane

      SKU: 19-MFP6200

      • Crane length: 6,2 m
      • Slewing torque: 12,2 kNm
      • Lifting power gross: 42 kNm
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 700 kg
        - Max out: 470 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest V7300

      Trejon Multiforest V7300

      SKU: 19-MFV7300

      • Crane length: 7,3 m
      • Slewing torque:13,4 kNm
      • Lifting power gross: 56 kNm
      • Hydraulic telescoping: 1,9 m
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 1 000 kg
        - Max ut: 550 kg
      Contact for price

      Availability: In Stock

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest MFV7800

      Trejon Multiforest MFV7800

      SKU: 19-MFV7800

      • Crane length: 7,8 m
      • Slewing torque:13,4 kNm
      • Lifting power gross: 56 kNm
      • Hydraulic telescoping: 1,9 m
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 1040 kg
        - Max ut: 510 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories

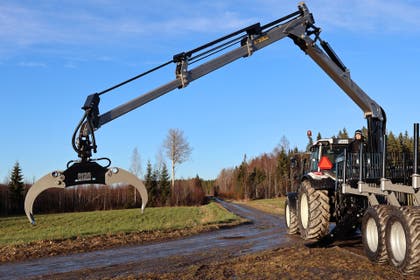

    • Trejon Multiforest V8400 S-Line

      Trejon Multiforest V8400 S-Line

      SKU: 19-MFV8400

      • Crane length: 8,4 m
      • Slewing torque: 17 kNm
      • Lifting power gross: 72,8 kNm
      • Hydraulic telescoping: 2 x 1,5 m
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m:1510 kg
        - Max out: 600 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
    • Trejon Multiforest V9000 S-Line

      Trejon Multiforest V9000 S-Line

      SKU: 19-MFV9000

      • Crane length: 9 m
      • Slewing torque: 17 kNm
      • Lifting power gross: 72,8 kNm
      • Hydraulic telescoping: 2 x 1,5 m
      • Max. lifting capacity excl. grapple and rotator:
        - 4 m: 1425 kg
        - Max out: 525 kg
      Contact for price

      Availability: To be ordered

      Technical Data Leaflet/Movie Accessories
