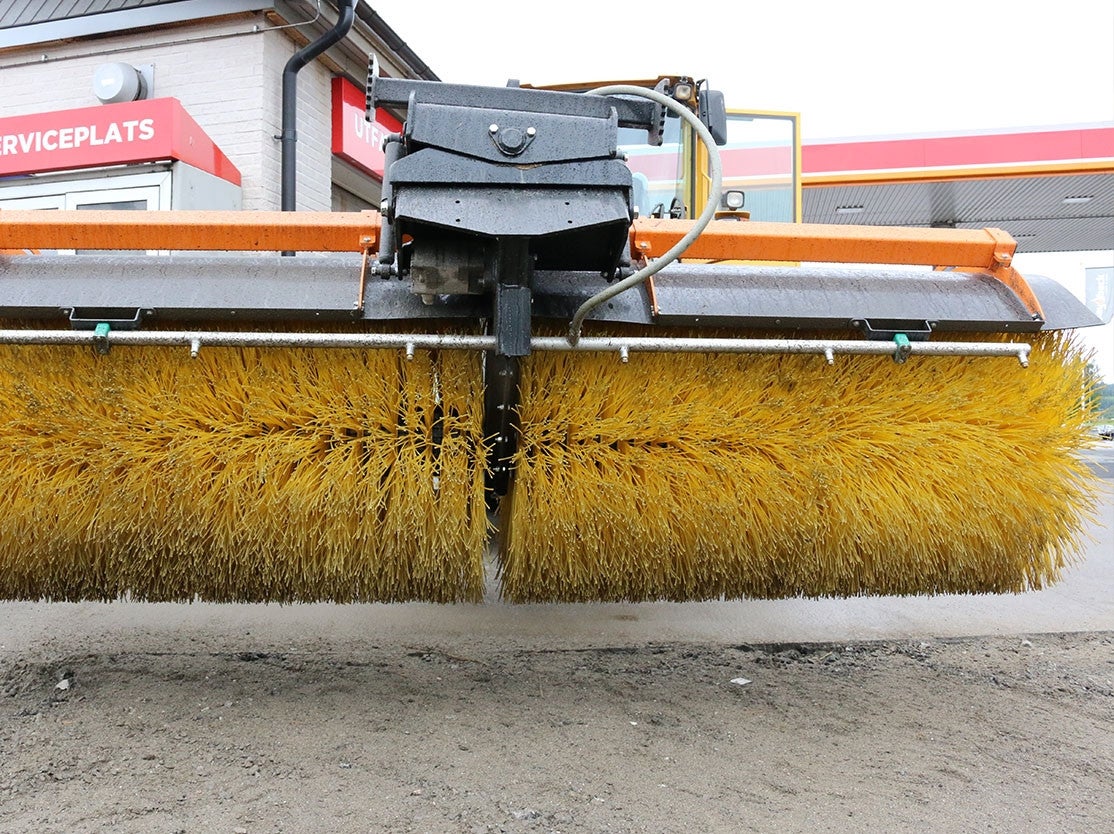

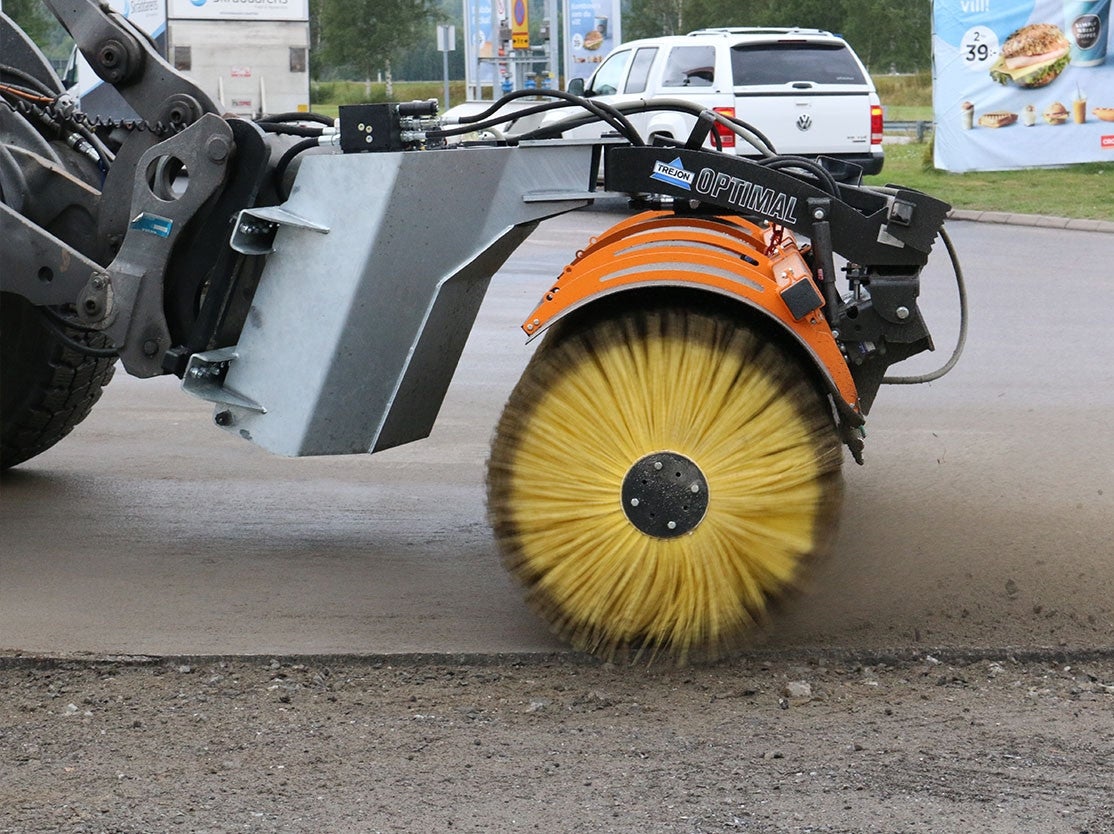

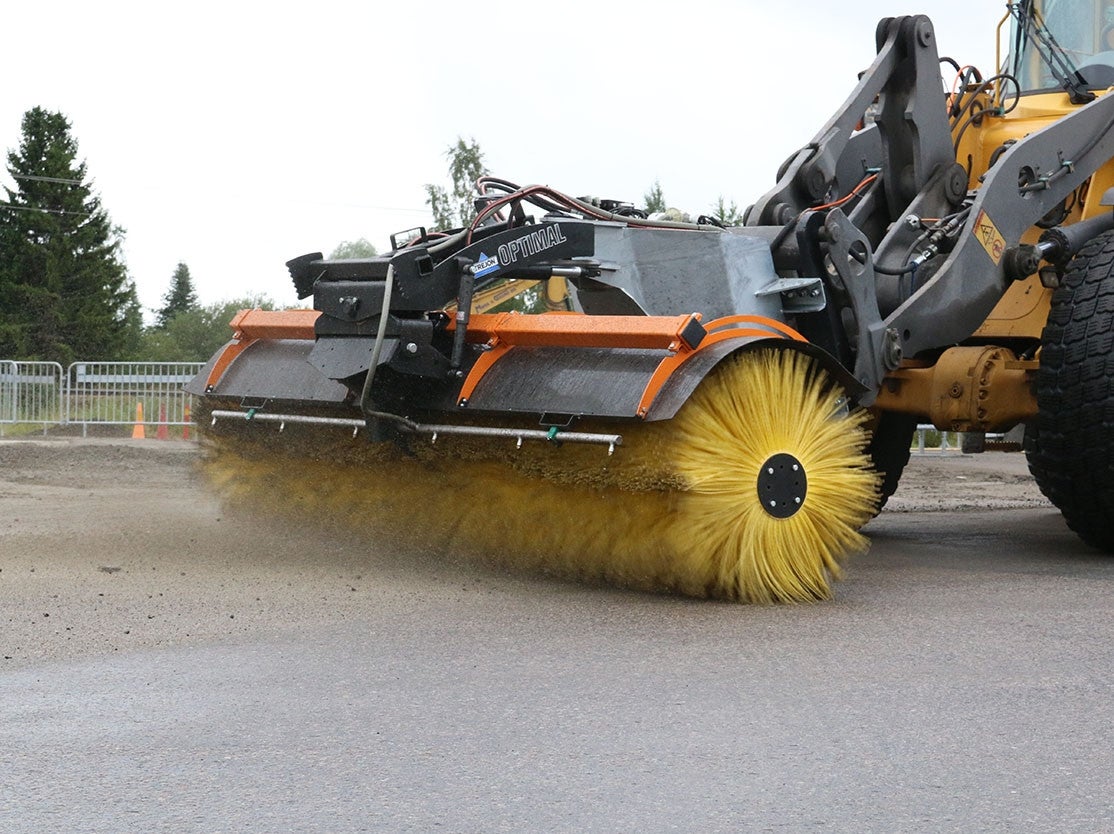

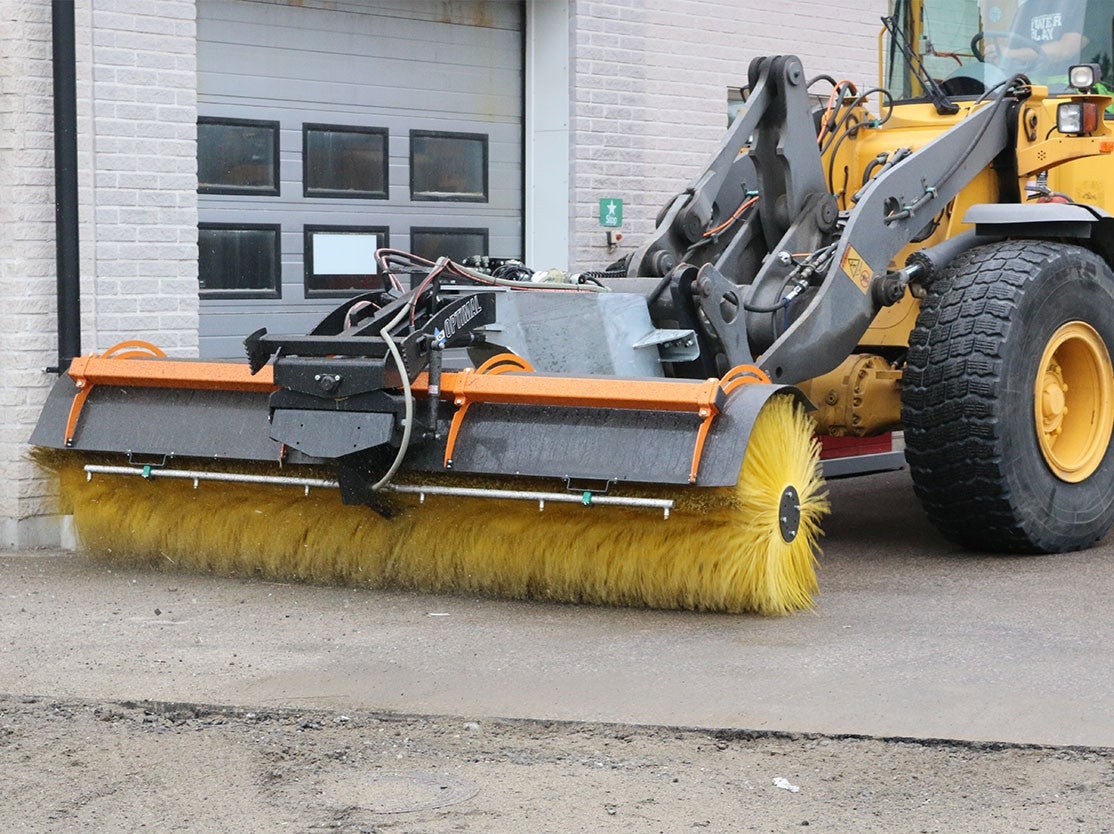

Compact sweeper for efficient cleaning in demanding environments

The Trejon Optimal SVX250 is a compact and efficient sweeper designed for removing sand, snow, and debris. It is suitable for tractors, wheel loaders, and other carriers over 4 tons, making it ideal where precision and accessibility are essential.

Efficient cleaning in a single pass
The advanced floating system with ±10° horizontal and vertical movement and a total range of 30 cm allows the brush to follow the ground precisely. This ensures effective and even cleaning—often in just one pass.

Excellent tracking in curves and along edges
The hydraulic diagonal adjustment of ±32°, with the pivot point behind the brush, provides excellent tracking. This makes it easy to maintain performance in curves and on uneven surfaces.

Center drive for maximum accessibility
The unique center drive allows sweeping close to fences, walls, and other obstacles. It also simplifies brush segment replacement, reducing maintenance downtime.

Flexible operation and improved control
The updated hydraulic system allows the brush to be angled during operation, even with a 2-hose configuration. The brush can also rotate in reverse for easier forward sweeping.

Robust construction for long service life
An oil-lubricated drivetrain and bolted wear parts ensure durability and reliability. The machine is designed for daily use in demanding environments.

Benefits

• Compact model with high precision and accessibility
• Efficient cleaning in a single pass
• ±10° oscillation with 30 cm movement range
• Hydraulic diagonal adjustment ±32°
• Center drive for close-to-edge sweeping
• Adjustable angle during operation
• Reverse rotation for easier sweeping
• Handles hydraulic flow up to 120 l/min
• 90 cm brush diameter
• Integrated splash guard following the brush
• Easy maintenance with smart brush segment replacement
• Oil-lubricated drivetrain for durability
• Bolted mounting system for flexibility
• Sandblasted and powder-coated construction
• Optional integrated water tank
